Commercial Truck Emergency Safety Kit Requirements: FMCSA, OSHA & ANSI Rules

Maintaining operational emergency safety equipment inside commercial motor vehicles is a strict federal mandate enforced across all 50 states. During North American Standard Level I and Level II roadside inspections conducted by the Commercial Vehicle Safety Alliance (CVSA), state highway patrols and FMCSA inspectors audit cab emergency gear under Step 7 of the standard inspection procedure.

Under Title 49 of the Code of Federal Regulations (49 CFR) Part 393, Subpart H (§ 393.95), every commercial motor vehicle power unit operated in interstate commerce must carry three mandatory emergency safety items: an operational fire extinguisher, emergency warning devices for stopped vehicles, and spare electrical fuses. Simultaneously, general workplace safety mandates under OSHA 29 CFR 1910.151 require employers to provide readily accessible first aid equipment for employee medical protection.

Failing to carry required emergency equipment results in direct violation points on a motor carrier's Safety Measurement System (SMS) Vehicle Maintenance BASIC score under the FMCSA CSA safety program. In hazardous materials transport, missing or discharged fire suppression equipment can trigger immediate out-of-service orders.

FMCSA 49 CFR § 393.95 Mandate

FMCSA 49 CFR § 393.95 & OSHA 29 CFR 1910.151(b)

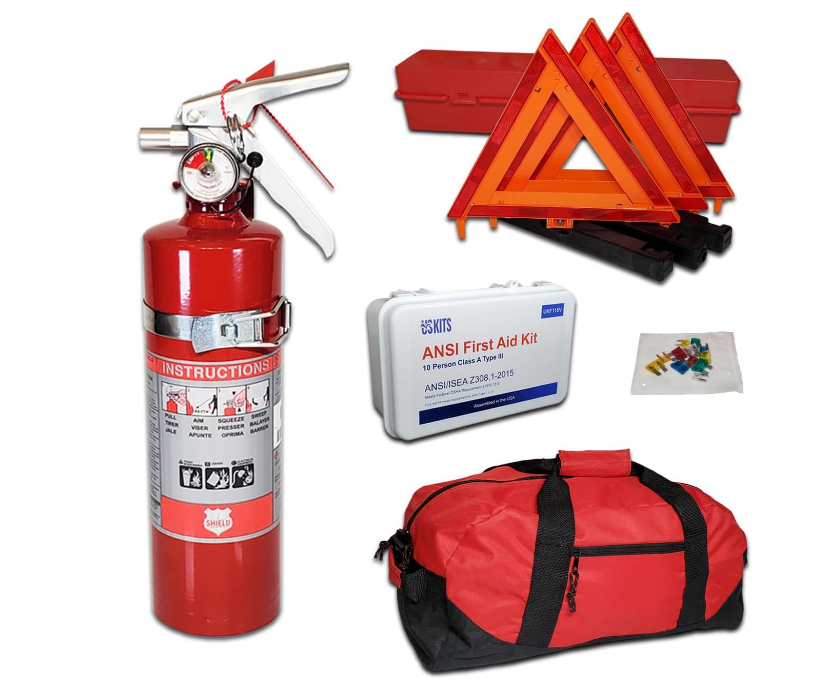

Commercial Motor Vehicle In-Cab Emergency Safety Kit

Technical Specification & Mandate

Comprehensive in-cab emergency safety package containing a UL-rated 5 B:C dry chemical fire extinguisher (or 10 B:C for hazardous materials placarded loads), three bidirectional FMVSS 125 reflective warning triangles in a high-density carrying box, an ANSI/ISEA Z308.1 Class A Type III weatherproof first aid kit, spare blade fuses, and a heavy-duty reinforced gear storage bag.

Roadside Practical Use & Deployment

Must remain permanently stowed inside the tractor cab or in an unlocked, readily accessible exterior equipment compartment. Verified during mandatory pre-trip inspections (49 CFR § 396.11) before dispatch and inspected at weigh stations and state border patrol checkpoints.

Roadside Inspection Pass/Fail Checklist

• Fire extinguisher pressure gauge needle firmly registered in the operational green zone.
• Three undamaged, clean bidirectional reflective warning triangles enclosed in their dedicated case.
• Weatherproof first aid kit stocked with sealed, non-expired trauma and burn dressings.
• Minimum of six spare electrical fuses covering all primary lighting and electronic circuit ratings.

FMCSA Fire Extinguisher Requirements (49 CFR § 393.95(a))

The Federal Motor Carrier Safety Regulations (FMCSRs) establish precise performance, rating, and mounting standards for commercial vehicle fire extinguishers under 49 CFR § 393.95(a):

• Rating for Non-Hazardous Freight: A power unit that does not transport hazardous materials must be equipped with either one fire extinguisher with an Underwriters' Laboratories (UL) rating of 5 B:C or more, or two fire extinguishers each having a rating of 4 B:C or more.
• Rating for Hazardous Materials (Placarded Cargo): A power unit transporting hazardous materials requiring placarding under 49 CFR Part 172 must be equipped with a fire extinguisher having a UL rating of 10 B:C or more.
• Non-Freezing Chemical Agent: The extinguishing chemical must utilize an agent that does not freeze in cold ambient temperatures (such as monoammonium phosphate ABC dry chemical or sodium bicarbonate BC agent).
• Toxic Vapor Prohibition: Extinguishers utilizing carbon tetrachloride, chlorobromomethane, or other toxic vaporizing liquid agents are strictly prohibited under federal law.
• Secure Mounting Requirement: The extinguisher must be securely mounted in a heavy-duty bracket designed to prevent it from sliding, rolling, or becoming a projectile during emergency braking or impact. Keeping an extinguisher loose under the bunk or seat is an automatic roadside violation.
• Inspection Readiness: The pressure gauge must register in the operational green zone, the safety pull pin must be secured with an unbroken tamper seal wire, and the nozzle must be clear of obstructions.

FMCSA 49 CFR § 393.95(a) Compliance

49 CFR § 393.95(a)(1) & (a)(2)

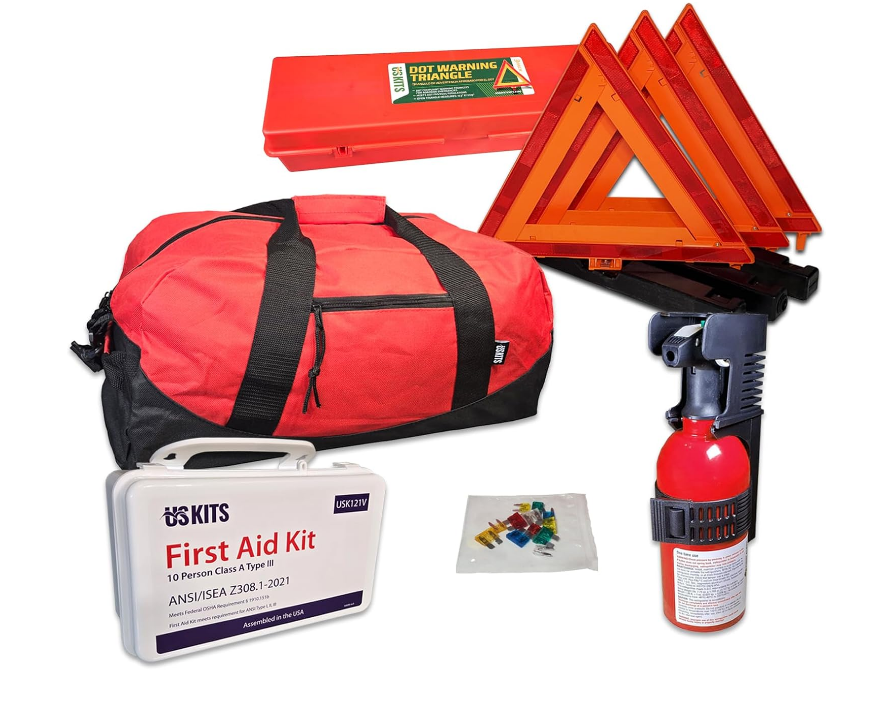

Commercial Vehicle Dry Chemical Fire Extinguisher (UL 5 B:C / 10 B:C)

Technical Specification & Mandate

UL-listed dry chemical fire extinguisher charged with monoammonium phosphate (ABC) or sodium bicarbonate (BC) non-freezing agent. Equipped with an integrated brass pressure indicator gauge, metal pull-ring safety pin, tamper-evident security seal wire, and a heavy-gauge steel vehicle mounting bracket with quick-release retention clamp.

Roadside Practical Use & Deployment

Rapid deployment for incipient class B (flammable liquid, diesel fuel, oil, grease) and class C (energized 12V/24V electrical harness) fires. Deployed following the P.A.S.S. protocol (Pull pin, Aim at base of fire, Squeeze handle, Sweep horizontally across fire source) to extinguish brake drum heat fires, tire friction fires, or engine compartment shorts.

Roadside Inspection Pass/Fail Checklist

• Pressure indicator needle positioned solidly inside the green operating sector (not discharged or overcharged).
• Safety pull pin secured with an unbroken plastic or wire tamper seal.
• Discharge nozzle completely unobstructed by dirt, lint, or insect nesting.
• Firmly clamped inside the vehicle mounting bracket—not rolling loose on floorboards or bunk areas.
• Current inspection tag or stamped manufacturing date showing valid annual service eligibility.

Bidirectional Reflective Warning Triangles (49 CFR § 393.95(f) & FMVSS 125)

Commercial motor vehicles must carry at least three bidirectional emergency reflective warning triangles conforming to Federal Motor Vehicle Safety Standard (FMVSS) No. 125. These devices provide critical visual alerting to prevent secondary rear-end collisions when a truck is stopped on a highway shoulder or travel lane.

Each triangle combines fluorescent orange inner material for daylight visibility with dark red reflex-reflectors for nighttime retroreflection. The base must incorporate weighted ballast (silica sand or heavy steel plates) capable of resisting 40 mph air turbulence created by passing commercial traffic.

• Exactly Three Triangles Required: Carrying only one or two triangles violates 49 CFR § 393.95(f). All three must be present, clean, and stored in an undamaged protective container.
• Ban on Open Flame Devices: Liquid-burning flares, kerosene pots, and incendiary fuses are strictly prohibited on vehicles transporting explosives, flammable liquids, or compressed gases. Reflective triangles are universally compliant across all cargo classes.
• 10-Minute Placement Rule (49 CFR § 392.22): Whenever a commercial vehicle stops on the shoulder or traveled portion of a highway, the driver must immediately activate the four-way hazard flashers and position all three warning triangles within 10 minutes.

FMVSS 125 & 49 CFR § 393.95(f)

FMCSA 49 CFR § 393.95(f) & FMVSS No. 125 (49 CFR § 571.125)

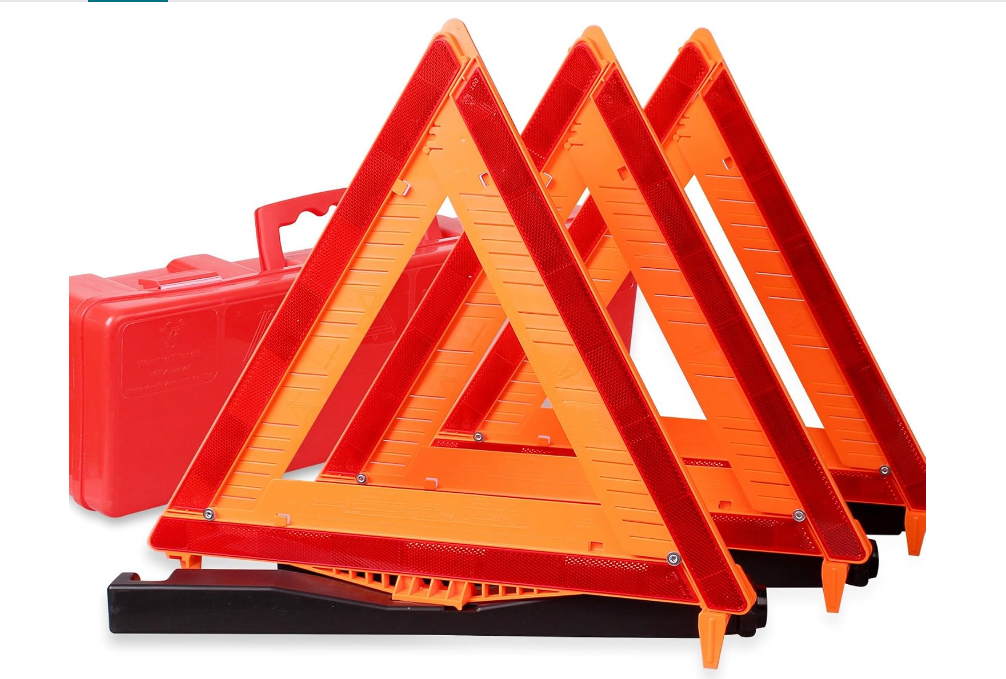

Bidirectional High-Visibility Emergency Warning Triangles (Set of 3 with Weighted Base)

Technical Specification & Mandate

Kit containing three folding triangular warning devices constructed from high-impact ABS and acrylic retroreflectors. Features fluorescent orange daylight panels and reflex-reflector night panels, non-skid rubberized ballast foot pads, interlocking hinge pins, and an impact-resistant red poly carrying case.

Roadside Practical Use & Deployment

Mandatory deployment within 10 minutes whenever a commercial vehicle stops on the traveled lane or highway shoulder for reasons other than necessary traffic stops (49 CFR § 392.22). Triangles warn approaching motorists, prevent rear-end collisions, and establish a clear safety perimeter around disabled equipment.

Roadside Inspection Pass/Fail Checklist

• Full set of exactly three (3) undamaged warning triangles present in the power unit.
• No missing, cracked, or severely scratched retroreflective prisms or fluorescent borders.
• Folding legs and central hinge locks deploy securely into an equilateral geometric triangle.
• Weighted ballast intact without leakage of internal ballast material.
• Stored inside a clean, protective red plastic casing in the cab or sleeper compartment.

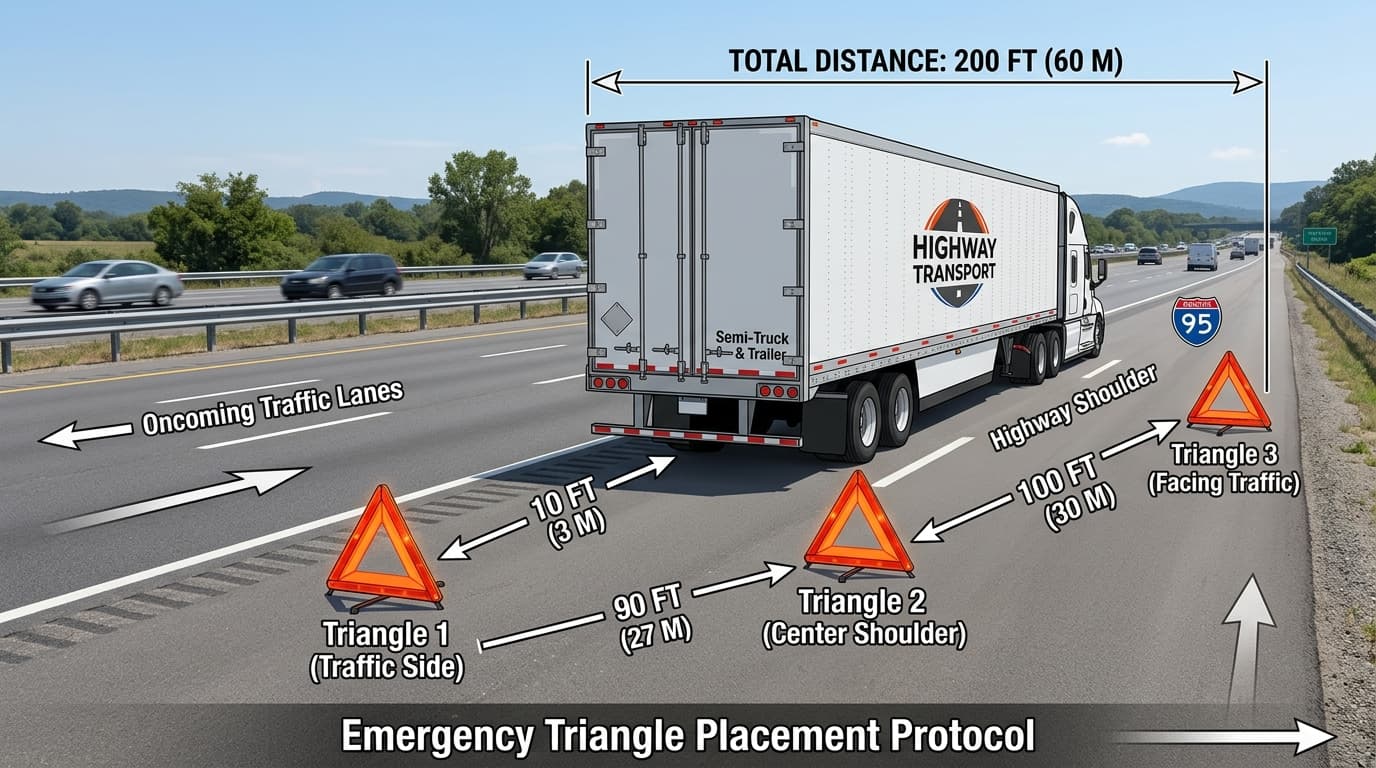

Warning Triangle Placement Guidelines & Highway Geometry (49 CFR § 392.22)

Proper placement depends on the roadway configuration and line of sight. Drivers should step out wearing high-visibility apparel and deploy triangles according to federal geometry:

1. Divided Highways and One-Way Roads: Place the first triangle 10 feet (4 paces) behind the rear of the vehicle on the traffic side; place the second triangle 100 feet (40 paces) behind the vehicle in the center of the lane or shoulder; place the third triangle 200 feet (80 paces) behind the vehicle in the center of the lane or shoulder facing approaching traffic.
2. Two-Way Undivided Highways (Two Lanes): Place one triangle 100 feet (40 paces) ahead of the vehicle in the center of the lane or shoulder to warn oncoming traffic; place the second triangle 10 feet (4 paces) behind the vehicle on the traffic side; place the third triangle 100 feet (40 paces) behind the vehicle in the center of the lane or shoulder to warn rear-approaching traffic.
3. Obstructed View (Curves, Hill Crests, or Blind Spots): If a commercial vehicle stops within 500 feet of a curve, hill crest, or visual obstruction, move the rear warning device between 100 feet and 500 feet back from the vehicle to provide approaching drivers with adequate sight stopping distance.

Federal Highway Placement Protocol (49 CFR § 392.22): Triangle 1 at 10 ft (traffic side), Triangle 2 at 100 ft (center shoulder), and Triangle 3 at 200 ft (facing oncoming traffic).

OSHA & ANSI/ISEA Z308.1-2021 First Aid Kit Standards

Under OSHA 29 CFR 1910.151(b), employers must ensure that adequate first aid supplies are readily accessible in the workplace. Because commercial truck drivers operate in remote environments far from immediate emergency medical services, the American National Standards Institute and International Safety Equipment Association (ANSI/ISEA Z308.1-2021) standard defines the accepted benchmark for workplace first aid kits.

For commercial motor vehicles, industry best practice mandates an ANSI Class A Type III First Aid Kit:

• Class A Contents: Contains 13 mandatory medical components designed to treat common injuries, including adhesive bandages, sterile gauze pads, 5"x9" trauma abdominal pads, triangular bandages for slings, antiseptic wipes, antibiotic ointments, burn dressings, eye wash solution with eye pads, and medical exam gloves.
• Type III Weatherproof Container: Denotes a water-resistant, gasketed, impact-resistant enclosure engineered to withstand moisture, dust, vibration, and extreme temperature fluctuations inside a truck cab or exterior equipment box.
• Supply Maintenance: Kits must be checked during monthly fleet safety audits to restock used items and replace expired burn gels, antibiotic creams, and eye wash bottles.

ANSI/ISEA Z308.1 & OSHA 1910.151(b)

ANSI/ISEA Z308.1-2021 & OSHA 29 CFR 1910.151(b)

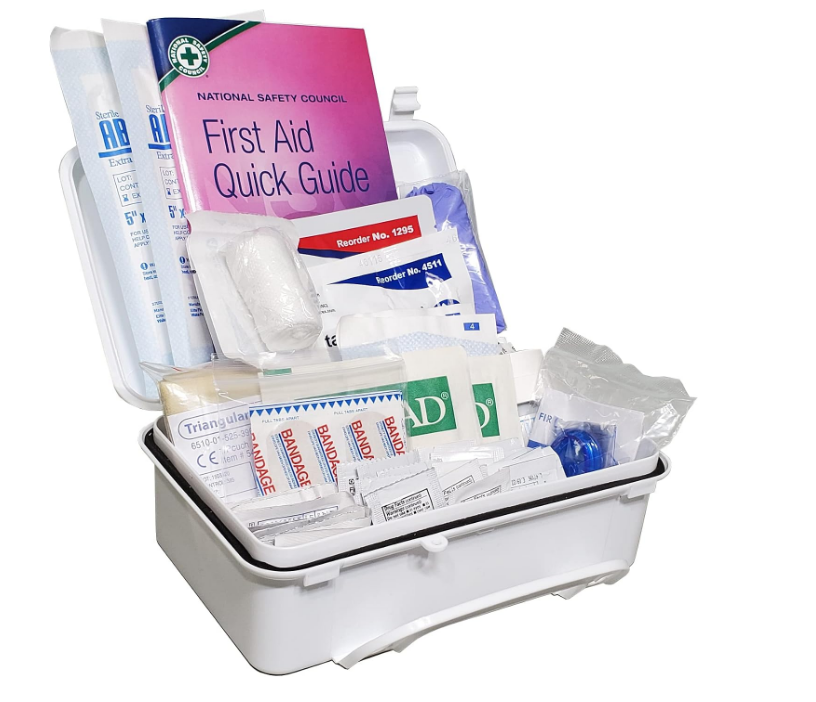

Class A Type III Weatherproof Commercial First Aid Kit

Technical Specification & Mandate

Gasket-sealed, impact-resistant industrial case equipped with ANSI-mandated life-safety items: sterile abdominal trauma pads (5"x9"), triangular bandage (40"x40"x56") for slings or tourniquet backing, sterile roller gauze, adhesive fabric bandages, antiseptic wipe packets, triple antibiotic ointment, burn dressing gel packs, sterile eye wash solution, medical nitrile exam gloves, and first aid quick guide.

Roadside Practical Use & Deployment

Immediate emergency roadside treatment for driver injuries, lacerations from sharp freight, road grime eye contamination, chemical splashes, or thermal burns during emergency mechanical adjustments. Stowed inside the cab sleeper compartment or side luggage box.

Roadside Inspection Pass/Fail Checklist

• Weatherproof rubber gasket intact and locking latches fully operational.
• Sterile trauma pads and roller bandages sealed in original moisture-barrier packaging.
• Antibiotic ointments, burn treatments, and eye wash solution within current expiration dates.
• Minimum required ANSI unit quantities verified against the printed inside-lid inventory checklist.

Spare Electrical Fuses Mandate (49 CFR § 393.95(e))

Under 49 CFR § 393.95(e), every commercial motor vehicle power unit must carry at least one spare fuse for each type and size of fuse needed to operate any required part of the vehicle's electrical system, unless the vehicle utilizes automatic circuit breakers.

Modern commercial tractors use multiplexed electronic control units (ECUs) and circuit protection, yet blade fuses (ATC, ATO, Mini, and Maxi) remain the primary defense for lighting, trailer 7-way auxiliary power, and telematics systems:

• Essential Fuse Amperage Assortment: Drivers should carry an assortment box containing 5A, 10A, 15A, 20A, 25A, and 30A blade fuses matched to the tractor's power distribution center.
• Immediate Roadside Defect Cure: If an officer observes an inoperative trailer marker lamp or clearance light, having a spare fuse on hand allows the driver to cure the defect on the spot, avoiding a lighting violation under 49 CFR § 393.9 and an additional failure citation under § 393.95(e).
• Dedicated Fuse Puller: A plastic fuse puller should be kept inside the fuse box to avoid shattering miniature fuse casings during extraction.

Commercial Driver PPE: High-Visibility Apparel & Hand Protection

Personal protective equipment (PPE) is critical whenever a driver steps out of the cab onto high-speed highway shoulders, intermodal ramps, or warehouse loading docks:

• High-Visibility Safety Vest (23 CFR Part 634 & ANSI/ISEA 107 Class 2): Federal highway regulations mandate that all workers within the right-of-way of federal-aid highways wear high-visibility garments. An ANSI Class 2 vest provides 360-degree retroreflective visibility up to 1,280 feet in dark conditions, giving approaching motorists crucial reaction time.
• Heavy-Duty Leather Work Gloves (OSHA 29 CFR 1910.138): Handling fifth-wheel pull pins, rusty trailer door latches, steel cargo chains, and hot brake components requires durable split cowhide work gloves to prevent lacerations, abrasions, and chemical burns.

ANSI/ISEA 107-2020 & OSHA 1910.138

ANSI/ISEA 107-2020 (Type R Class 2) & OSHA 29 CFR 1910.138

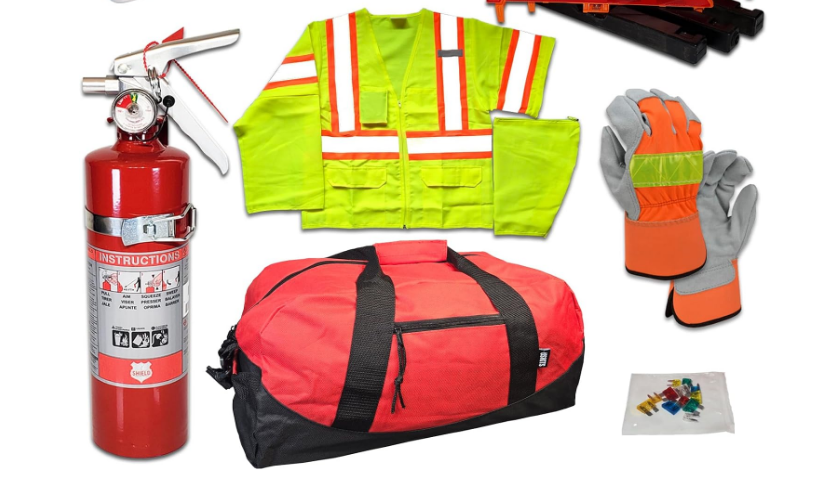

High-Visibility Reflective Safety Vest (Class 2) and Heavy-Duty Leather Work Gloves

Technical Specification & Mandate

ANSI Class 2 safety vest featuring breathable fluorescent yellow-green polyester mesh, 2-inch silver retroreflective striping with orange contrast trim, heavy-duty zipper closure, and dual chest mic tabs. Paired with heavy-duty split cowhide leather work gloves featuring reinforced leather palms, cotton safety cuffs, and retroreflective knuckle bands.

Roadside Practical Use & Deployment

Mandatory personal protective equipment (PPE) donned before stepping out of the cab for pre-trip inspections, roadside breakdown triangle placement, tire chain installation, fifth-wheel coupling checks, and warehouse loading dock maneuvering.

Roadside Inspection Pass/Fail Checklist

• Safety vest clean and free of heavy diesel fuel, grease, or road grime that obscures fluorescent fabric.
• Retroreflective tape completely intact without peeling, delamination, or severe heat cracking.
• Work gloves dry, flexible, and free from punctures or ripped palm seams.
• Stowed in driver door pocket or overhead cab console for immediate access before exiting cab.

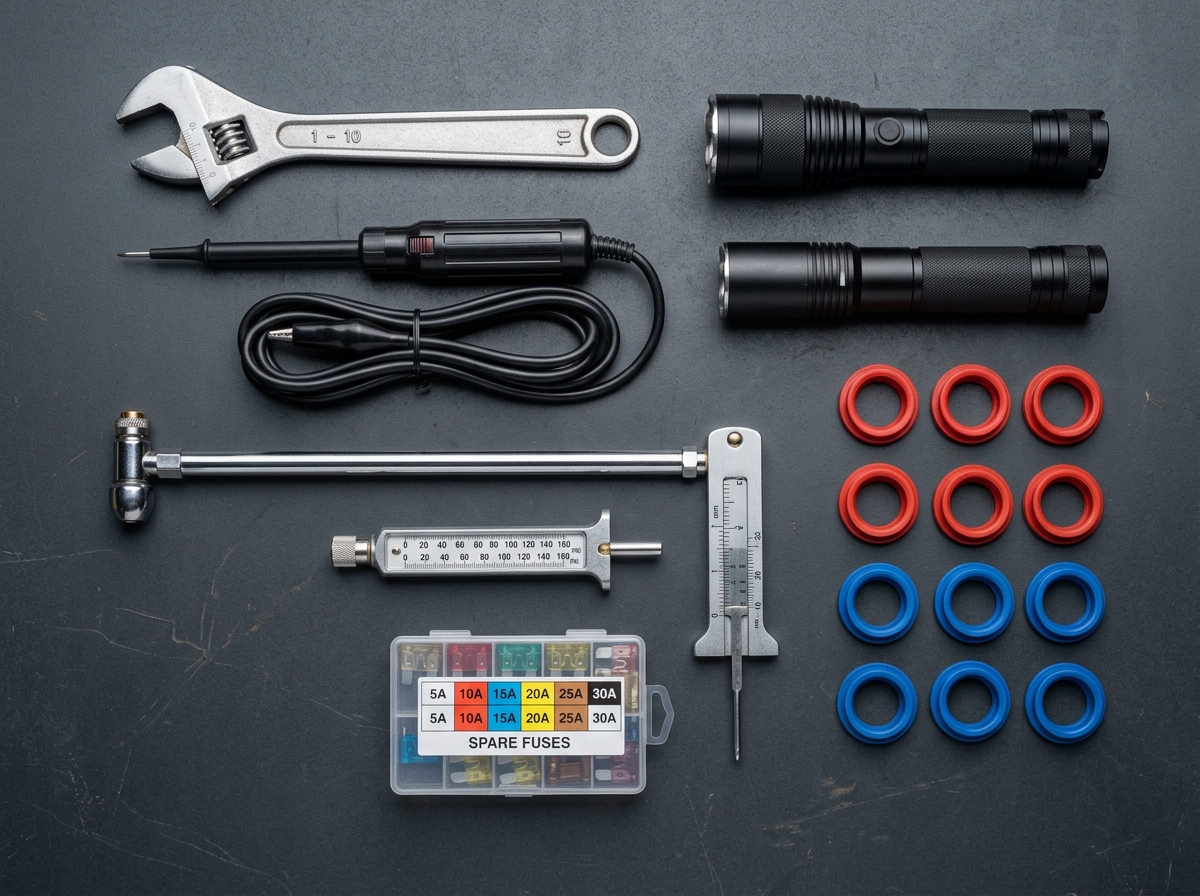

Recommended Roadside Mechanical Diagnostic Tools

In addition to federally mandated emergency equipment, experienced commercial drivers carry essential roadside diagnostic tools to identify and correct defects that frequently cause CVSA out-of-service orders:

• Dual-Foot Commercial Tire Pressure Gauge: A straight-on dual-foot gauge calibrated up to 150 PSI allows accurate pressure checks on inner dual tires without bending valve stems, preventing violations under 49 CFR § 393.75(a)(3) for underinflated tires.
• Tire Tread Depth Gauge: Calibrated in 32nds of an inch to ensure steer tires maintain at least 4/32" and drive/trailer tires maintain at least 2/32" of remaining tread groove depth.
• Replacement Gladhand Rubber Seals: Spare red (emergency) and blue (service) rubber seals prevent costly out-of-service citations caused by audible air leaks at the tractor-to-trailer gladhand connection.
• Heavy-Duty 6V–24V Circuit Test Light: Allows fast troubleshooting of broken trailer lighting grounds, blown fuses, and severed wires during nighttime transit.
• High-Lumen Inspection Flashlight: An IPX7-rated LED light facilitates thorough pre-trip inspections of brake pushrod travel, slack adjusters, and suspension components.

CVSA Out-of-Service Prevention Kit

FMCSA 49 CFR Part 396 & CVSA Out-of-Service Criteria

Heavy-Duty Roadside Mechanical Tool & Diagnostic Essentials Kit

Technical Specification & Mandate

Heavy-duty roadside mechanical kit featuring a commercial dual-foot straight-on tire pressure gauge (calibrated to 150 PSI for inner dual wheels), calibrated tire tread depth gauge (measured in 32nds of an inch), spare replacement red (emergency) and blue (service) rubber gladhand air seals, 6V-24V heavy-duty circuit test light with ground clamp, high-lumen waterproof LED inspection flashlight, adjustable wrench, and spare blade fuse container.

Roadside Practical Use & Deployment

Diagnostic and corrective maintenance during daily pre-trip inspections and highway disablements. Enables instant verification of tire cold inflation pressure, early detection of tire tread wear violations, immediate repair of leaking air brake gladhand couplings, and circuit tracing for trailer marker light failures.

Roadside Inspection Pass/Fail Checklist

• Dual-foot tire pressure gauge calibrated and zeroed; slide rule clean and freely moving.
• Tire tread depth gauge indicator accurate (steer tires >= 4/32", drive/trailer tires >= 2/32").
• Minimum of 4 spare gladhand rubber seals pliable without dry rot, oil saturation, or tears.
• Circuit test light bulb operational; alligator ground clip tight and uncorroded.
• High-lumen LED flashlight batteries fully charged or rechargeable battery unit topped up.

Daily 3-Minute Pre-Trip Emergency Equipment Audit Checklist

To ensure continuous roadside compliance, incorporate this rapid 3-minute equipment audit into your daily pre-trip inspection under 49 CFR § 396.11:

1. Inspect the fire extinguisher: Confirm it is locked inside its mounting bracket. Verify the gauge needle is in the green zone, the safety pin is sealed, and the nozzle is unobstructed.
2. Verify the warning triangles: Open the storage box and verify all three triangles are present, undamaged, and lock securely into position.
3. Confirm spare fuses: Check that the spare fuse container holds at least one fuse for every amperage rating utilized in the vehicle.
4. Check first aid supplies: Ensure the ANSI Class A first aid kit is secure and that sterile dressings and eye wash bottles are within valid expiration dates.
5. Verify PPE accessibility: Confirm your ANSI Class 2 high-visibility safety vest and work gloves are stowed within arm's reach of the driver's seat.
